Program-controlled backlight – part I. – design of control electronics

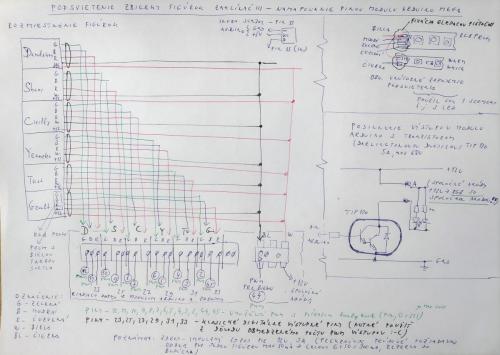

Schematic - part I

Schematic - part I

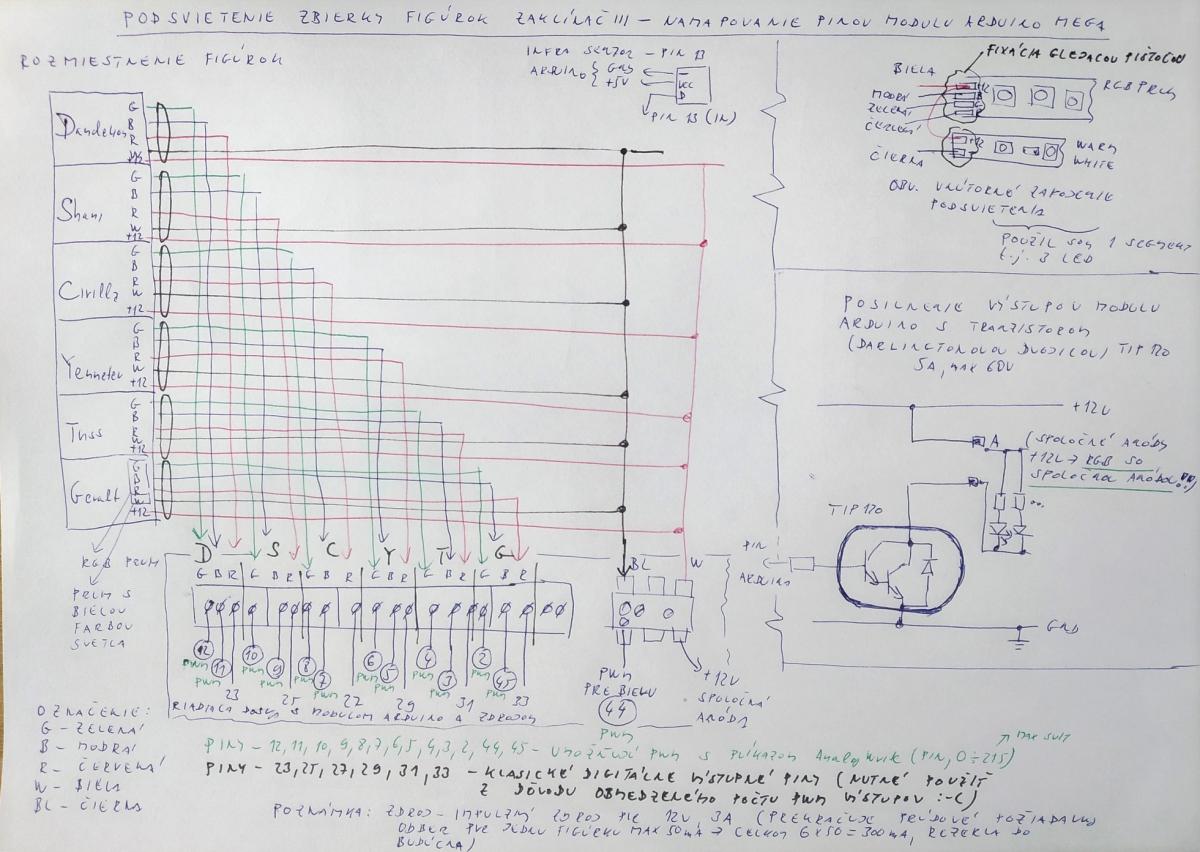

Schematic - part Ia

Schematic - part Ia

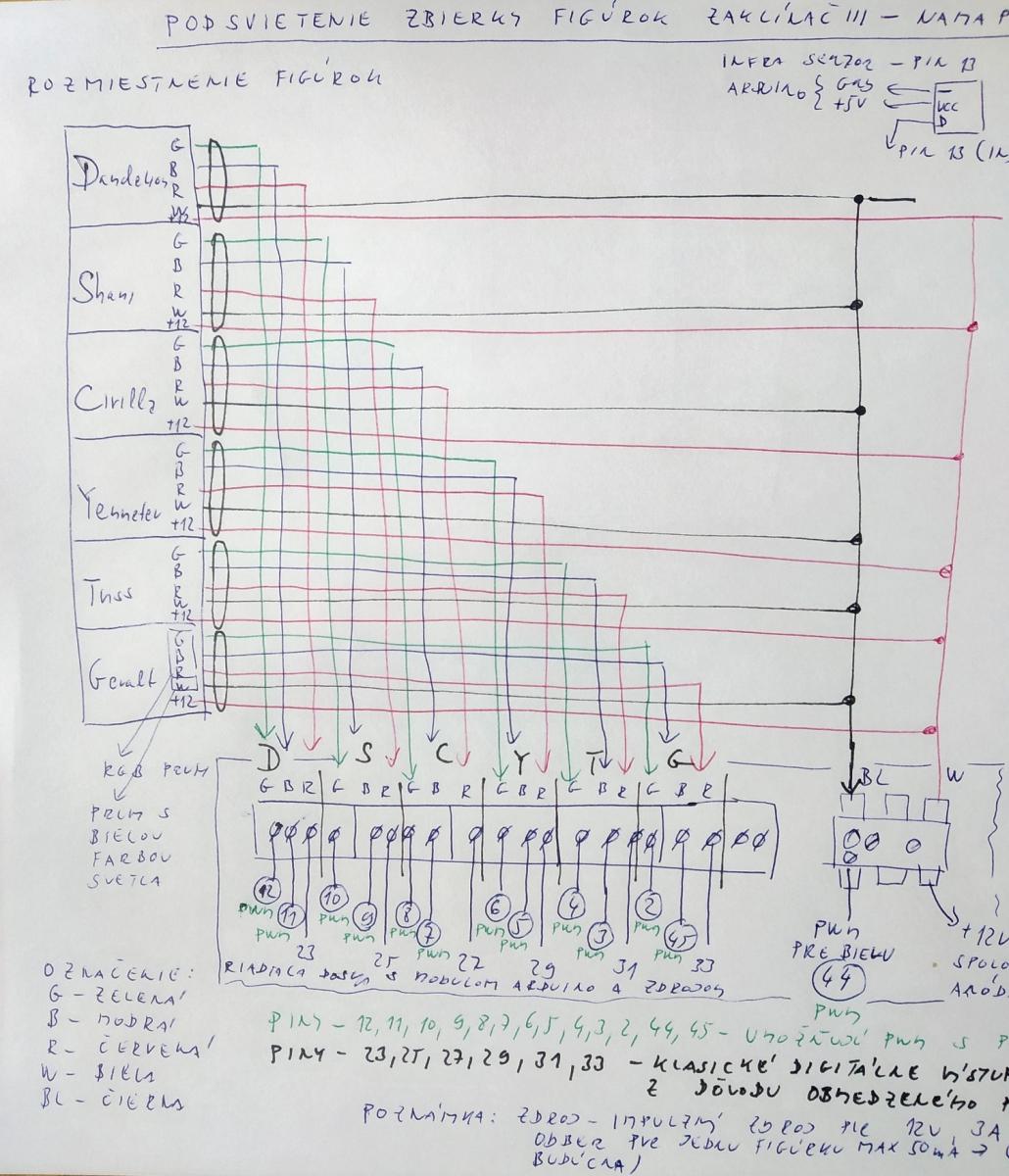

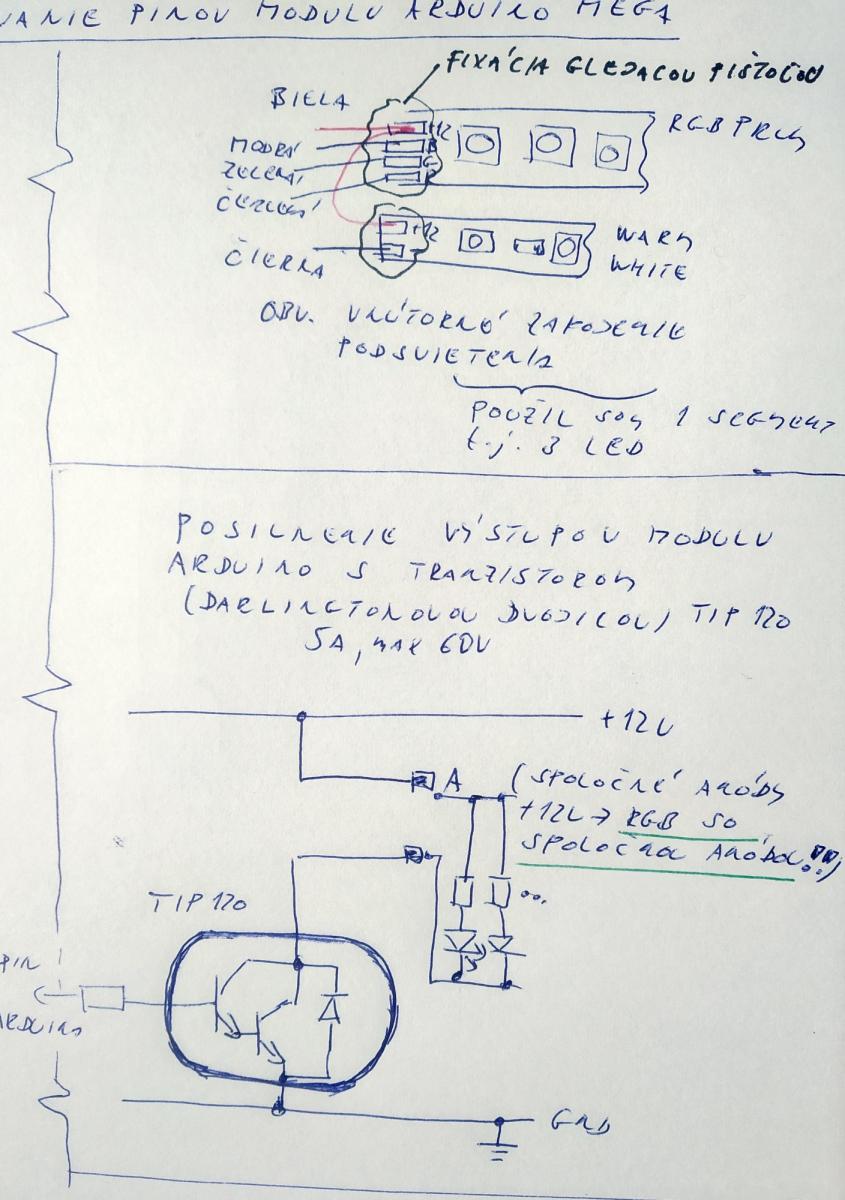

Schematic - part Ib

Schematic - part Ib

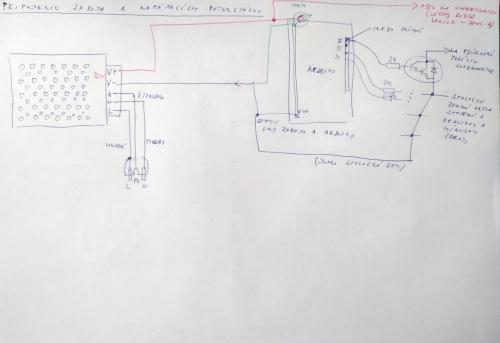

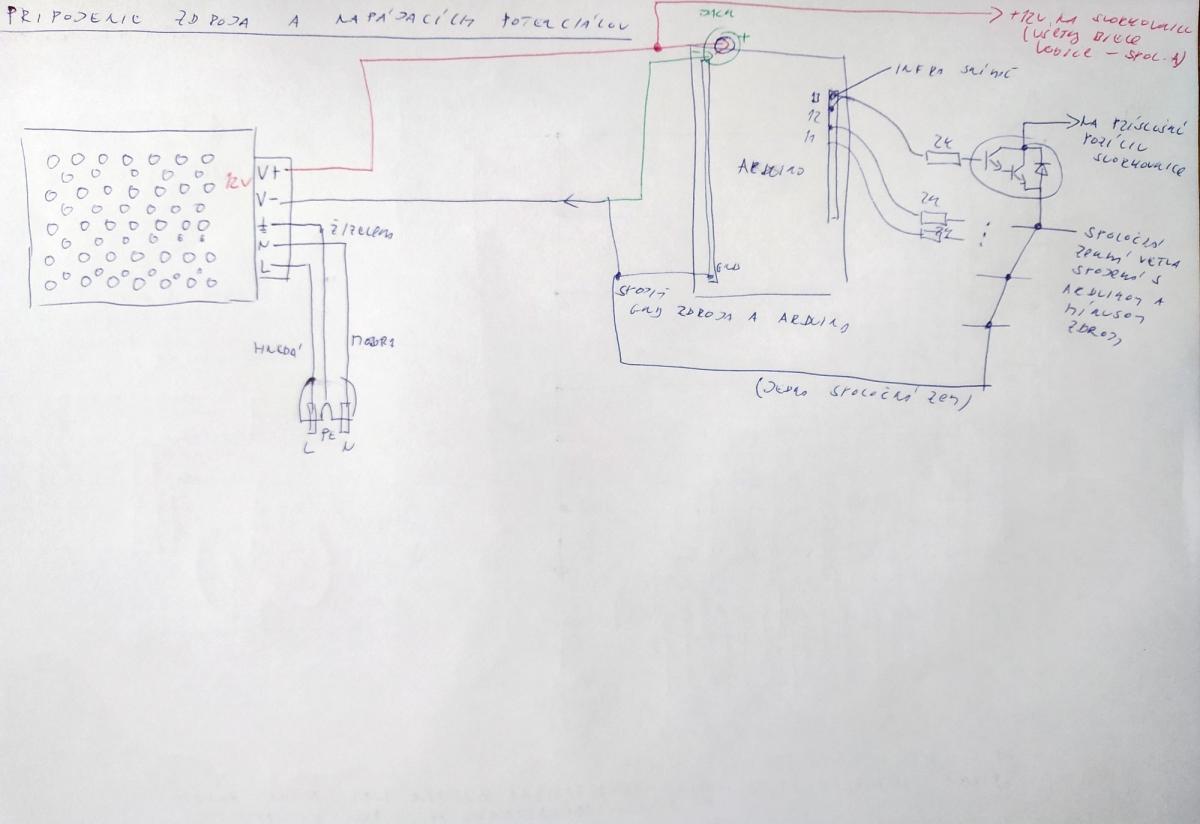

Schematic - part II - module interconnections

Schematic - part II - module interconnections

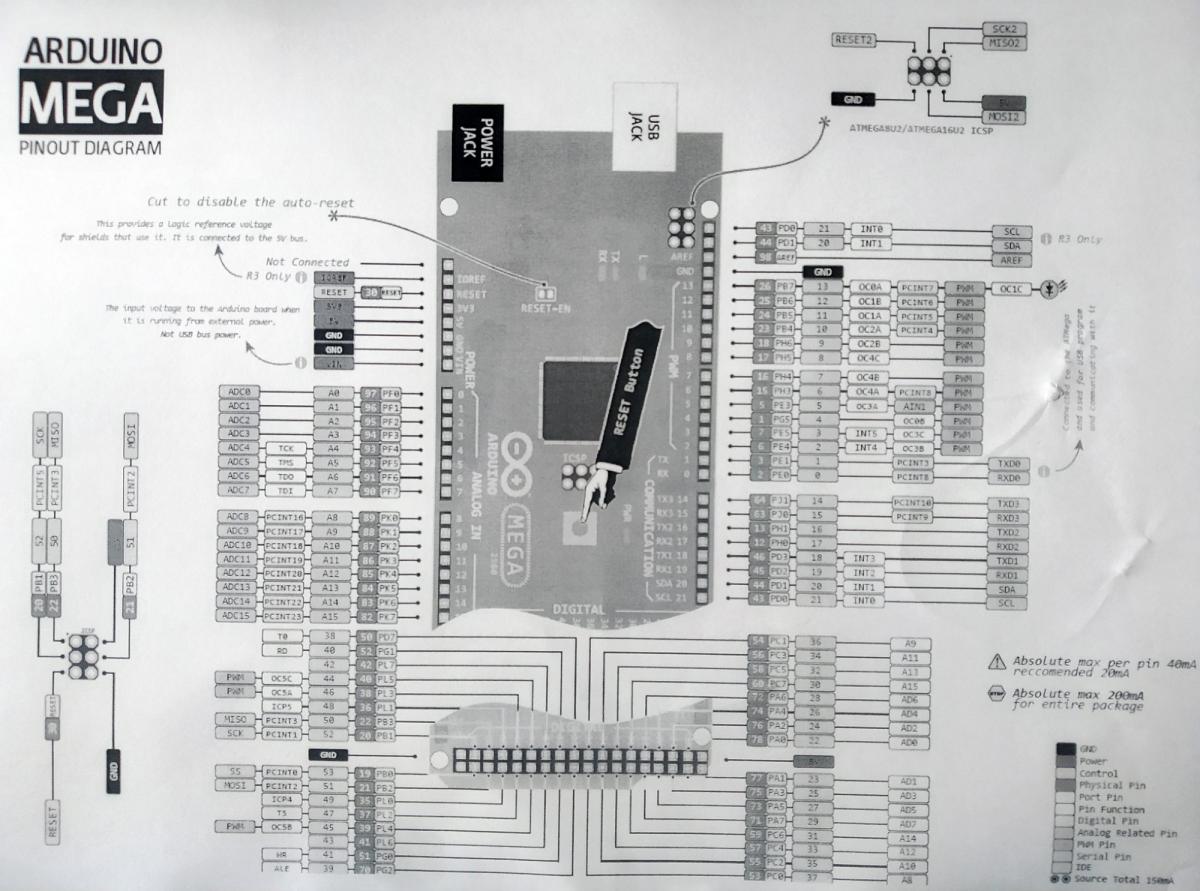

Arduino Mega pinouts

Arduino Mega pinouts
